Name: Agitators Standardized Vertical Agitator
Brand: AGIMIX
SKU: 242
Availability: PreOrder

Details

Product Description

The industrial agitator or industrial mixer for liquids by Agimix standardized is designed for better process efficiency and energy consumption. For this, we rely on extensive technology and the best professionals who, through practical tests and CFD (Computational Fluid Dynamics) programs,

Finite element analysis, and long experience in over two hundred deliveries, can ensure the ideal equipment for each type of process. Our agitators are used in a wide range of sectors such as chemical industries in general, food industries, steelmaking, mining, environmental, and pharmaceutical sectors.

Information
Technical Characteristics and Advantages

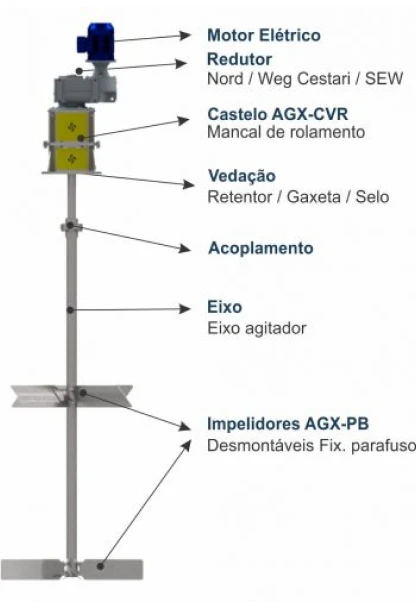

Agitators made of carbon steel, stainless steel, or coated
High-efficiency electric gear motor with low energy consumption, aluminum structure
Equipment designed to maintain homogeneous systems, with agitation levels between 4 and 5, up to 10
Standard sealing with mechanical seal, with optional packing gland, suitable for ATM tanks

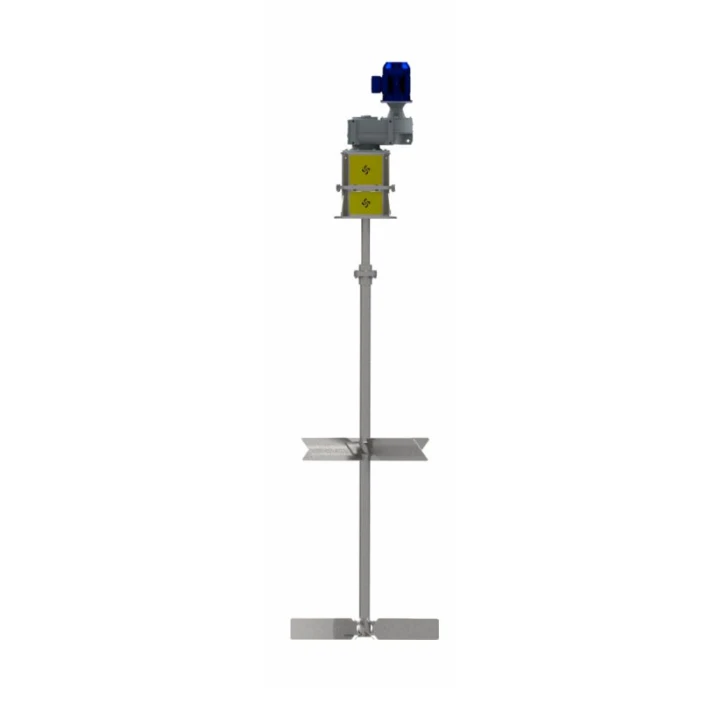

Pendular construction, flanged mounting with support by castle equipped with self-aligning bearing, set of two high-efficiency impellers or pitched blade 45°. (Bottom bearing not included)
Contact us for model standardization according to application and requirements

Standardized Models for Quick Selection (Simple Applications)

SYSTEM CODE STANDARD	Volume (Liters)	DIMENSIONS (Approx.)	Power (HP)	Pendulum Shaft	Rotation	Approx. N.A 4 ~ 5	Castle Type
SYSTEM CODE STANDARD	Volume (Liters)	Diameter	Power (HP)	Pendulum Shaft	Rotation	Approx. N.A 4 ~ 5	Castle Type
AGX-AE-183 - MR/CR/E/2I,0.25HP x 217rpm	50	365	0.25	Ø 28	217	4.54	BASE + SEAL
AGX-AE-230 - MR/CR/E/2I,0.25HP x 162rpm	100	460	0.25	Ø 28	162	4.22	BASE + SEAL
AGX-AE-263 - MR/CR/E/2I,0.25HP x 162rpm	150	525	0.25	Ø 28	162	4.87	BASE + SEAL
AGX-AE-310 - MR/CR/E/2I,0.25HP x 130rpm	250	620	0.25	Ø 28	130	4.36	BASE + SEAL
AGX-AE-348 - MR/CR/E/2I,0.25HP x 108rpm	350	695	0.25	Ø 28	108	4.65	BASE + SEAL
AGX-AE-395 - MR/CR/E/2I,0.5HP x 109rpm	500	790	0.5	Ø 31.75	109	5.08	BASE + SEAL
AGX-AE-450 - MR/CR/E/2I,0.5HP x 131rpm	750	900	0.5	Ø 31.75	131	4.79	BASE + SEAL
AGX-AE-500 - MR/CR/E/2I,0.75HP x 164rpm	1000	1000	0.8	Ø 31.75	164	5.04	Castle CVR-160
AGX-AE-530 - MR/CR/E/2I,0.75HP x 132rpm	1250	1060	0.8	Ø 31.75	132	4.33	Castle CVR-160
AGX-AE-570 - MR/CR/E/2I,1HP x 134rpm	1500	1140	1.0	Ø 31.75	134	4.81	Castle CVR-200
AGX-AE-600 - MR/CR/E/2I,1HP x 134rpm	1750	1200	1.0	Ø 31.75	134	4.95	Castle CVR-200
AGX-AE-625 - MR/CR/E/2I,1.5HP x 137rpm	2000	1250	1.5	Ø 31.75	137	4.8	Castle CVR-200
AGX-AE-675 - MR/CR/E/2I,1.5HP x 137rpm	2500	1350	1.5	Ø 31.75	137	4.75	Castle CVR-200
AGX-AE-710 - MR/CR/E/2I,2HP x 113rpm	3000	1420	2.0	Ø 38	113	4.98	Castle CVR-200
AGX-AE-790 - MR/CR/E/2I,2HP x 113rpm	4000	1580	2.0	Ø 38	113	4.5	Castle CVR-200
AGX-AE-850 - MR/CR/E/2I,2HP x 99rpm	5000	1700	2.0	Ø 38	99	4.55	Castle CVR-200
