Name: Agitators Mechanical Circulator
Brand: AGIMIX
SKU: 243
Availability: PreOrder

Details

Product Description

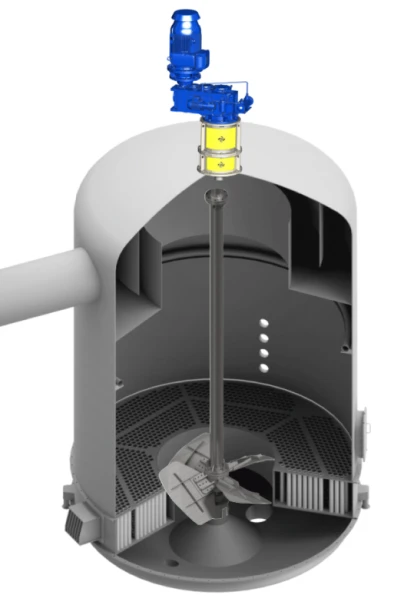

The Agimix Mechanical Circulators were developed to optimize the sugar cooking process. Below, you can see the construction of the Agimix Mechanical Circulator, and alongside it, the advantages and benefits it provides to the process. Agimix systems are sized together with our process consultants.

Extra information
Advantages

Minimum time gain in the mass process A = - 15% (may reach 25%) mass b = - 25% (may reach 35%)

Process control and automation by monitoring the engine load and can be done by amperage or torque accurately and ease for the operator.

Greater control over the end squeeze of the mass, allowing to obtain a higher concentration of brix by reducing honey generation.

More homogeneous and regular final crystals thus reaching greater dimensions

Better temperature distribution in the flow by substantially reducing low -speed zones, minimizing the punctual overheating effect.

It makes it possible to work with larger pasta height on the calendar without harming the cooking, performance and quality.

Lower steam consumption and lower pressure in the calendar as well as the use of v2 vapor.

Information
Technical Characteristics And Advantages

Agimix mechanical circulators use only high-efficiency gearboxes and motors from leading market brands: SEW, WEG-Cestari, NORD, Sumitomo.
Our castle-type supports allow the drive to operate free of axial and radial loads, extending component service life.
Two sealing options are offered for Agimix mechanical circulators. Gland packing: mounted with a concentric box integrated into the assembly, with self-lubricating PTFE rings. Mechanical seal: mounted with a cartridge-type mechanical seal system with cooling and guide bearing. Both options ensure 100% sealing guaranteed by Agimix.
The bottom bearing is mounted below the blades to further increase flow and efficiency, using high abrasion-resistant guide bushings. It can be easily replaced during a scheduled shutdown.

The transmission shafts designed for Agimix mechanical circulators were developed to generate low axial load with maximum torsional resistance. Tubular shafts with higher polar moment of inertia and lower weight per meter are used. Material options: AISI 304 stainless steel / carbon steel coated with high-resistance epoxy paint.
The transmission shafts designed for Agimix mechanical circulators were developed to generate low axial load with maximum torsional resistance. Tubular shafts with higher polar moment of inertia and lower weight per meter are used. Material options: AISI 304 stainless steel / carbon steel coated with high-resistance epoxy paint.
